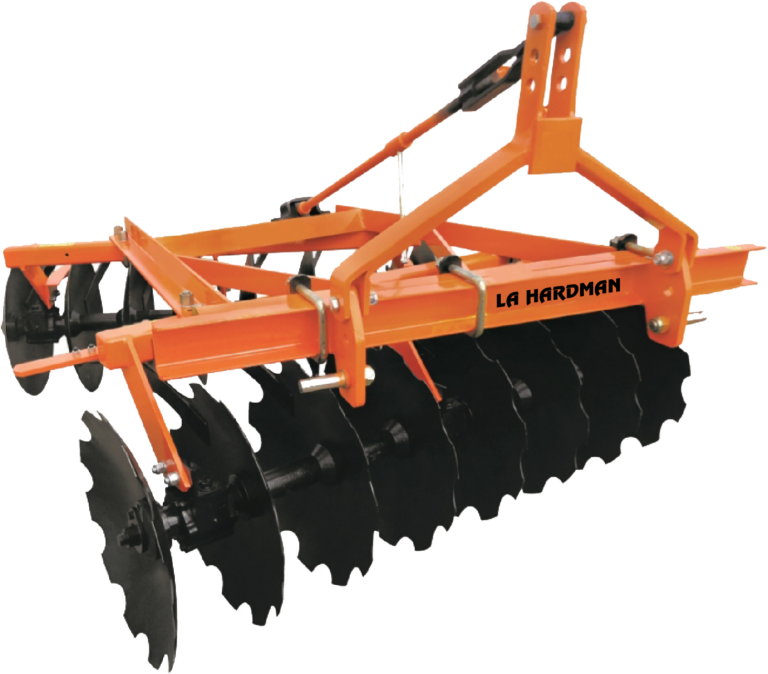

Mounted Offset Disc Harrow

In Stock

Mounted Offset Disc Harrow used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.

Used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
It can be used in light and medium soil.
High quality boron steel disc with 48~52 HRC hardness.
Tillage depth of the harrow is 127~178 mm.
Easily transportable – as it gets easily attached and mounted.

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist

Have a Question? Ask a Specialist

(+260) 977 525 496 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Durability.

Always the correct Implement

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

Mounted Offset Disc Harrow used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.

Used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
It can be used in light and medium soil.
High quality boron steel disc with 48~52 HRC hardness.
Tillage depth of the harrow is 127~178 mm.
Easily transportable – as it gets easily attached and mounted.

Specifications for Mounted LA HARDMAN Offset Disc Harrow

DESCRIPTION	GGS-MODH 12	GGS-MODH 16	GGS-MODH 18	GGS-MODH 20	GGS-MODH 22	GGS-MODH 24
MAIN FRAME FRONT SUPPORT	90x10mm Angle 100×50 MS Channel	90x10mm Angle 100×50 MS Channel	90x10mm Angle 100×50 MS Channel	90x10mm Angle 100×50 MS Channel	90x10mm Angle 100×50 MS Channel	90x10mm Angle 100×50 MS Channel
AXLE ROD	(Solid Square Rod)	(Solid Square Rod)	(Solid Square Rod)	(Solid Square Rod)	(Solid Square Rod)	(Solid Square Rod)
NO. OF DISCS	12	16	18	20	22	24
TYPE OF DISC	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear
DISC DIAMETER	610 x 6 mm Boron Steel	610 x 6 mm Boron Steel	610 x 6 mm Boron Steel	610 x 6 mm Boron Steel	610 x 6 mm Boron Steel	610 x 6 mm Boron Steel
WIDTH OF CUT	1420 mm	1778 mm	2006 mm	2235 mm	2465 mm	2693 mm
BEARING HUBS	4	6	6	8	8	8
TRACTOR POWER (HP)	40-45	50-60	65-70	70-75	80-90	90-100
APPROX. WEIGHT KGS.	450	640	690	750	810	870
