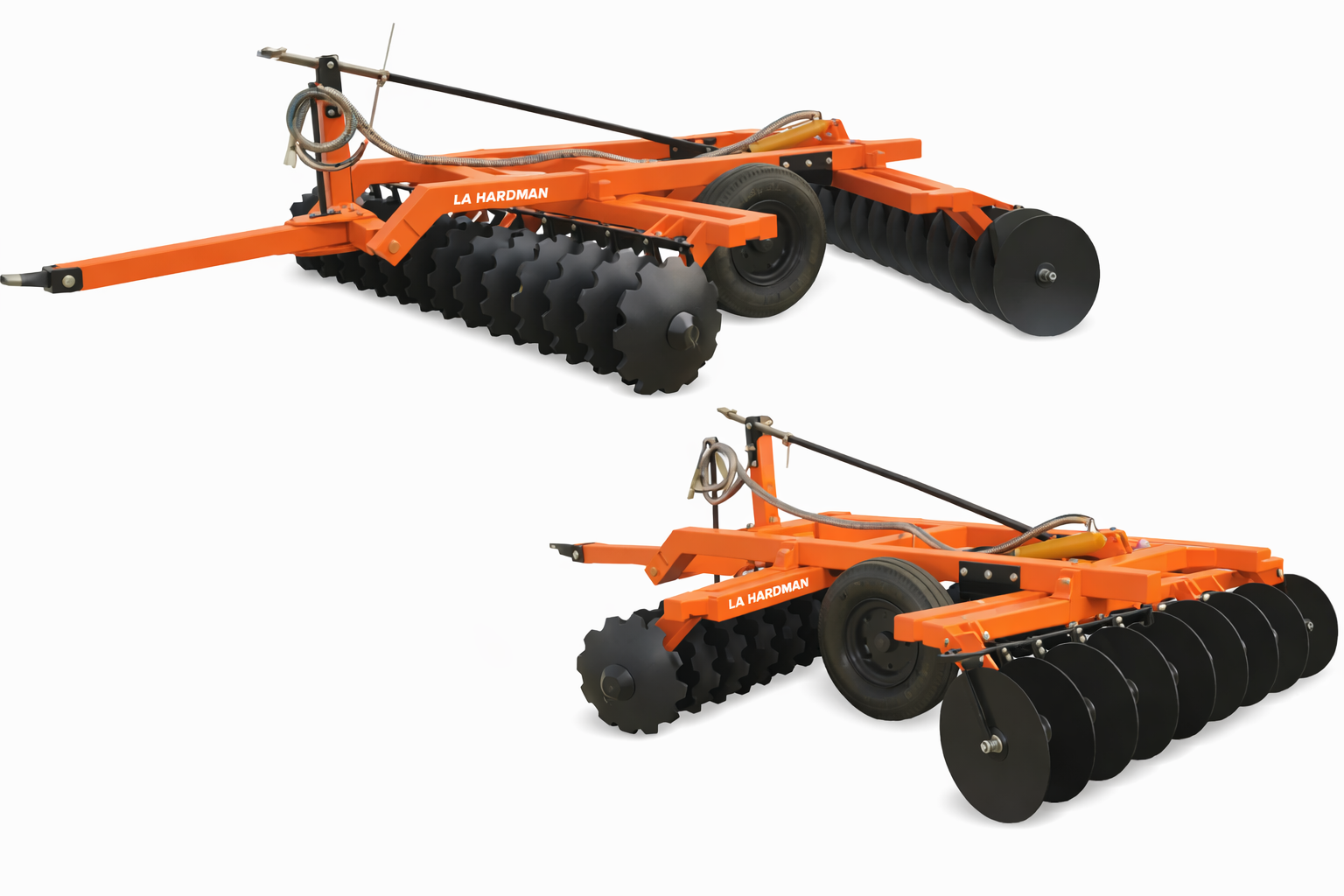

Hydraulic Trailed Disc Harrow

In Stock

This disc is widely used in tractor used for digging land and making a land surface uniform for farming and agriculture purpose. Disc harrow is used for superficial ploughing, breaking big clods, roots and eliminate the weeds. Get the types of disc harrow, disc harrow price online on

Used in open field workings for the superficial ploughing, shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
It can be easily transported on the tyres using the hydraulic system.
High quality boron steel disc with 48~52 HRC hardness.
Effectively break up heavy clods because of sturdy design and weight.
Bearing spools for better lubrication and less load on tractor.
High quality seals are used to prevent the bearing & hub from mud & water entry

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist

Have a Question? Ask a Specialist

(+260) 977 525 496 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Durability.

Always the correct Implement

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

Used in open field workings for the superficial ploughing, shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
It can be easily transported on the tyres using the hydraulic system.
High quality boron steel disc with 48~52 HRC hardness.
Effectively break up heavy clods because of sturdy design and weight.
Bearing spools for better lubrication and less load on tractor.
High quality seals are used to prevent the bearing & hub from mud & water entry

Specification for LA HARDMAN Hydraulic Trailed Disc Harrow

DESCRIPTION	GGS-HTDH18D	GGS-HTDH20D	GGS-HTDH22D	GGS-HTDH24D	GGS-HTDH30D
FRAME BOX	125x125mmx6MM Square Box Frame	125x125mmx6MM Square Box Frame	125x125mmx6MM Square Box Frame	125x125mmx6MM Square Box Frame	125x125mmx6MM Square Box Frame
GANG BOLT/AXLE	52mm Solid Square	52mm Solid Square	52mm Solid Square	52mm Solid Square	52mm Solid Square
NO. OF DISC	18	20	22	24	30
TYPE OF DISC	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear
DISC DIAMETER	610 x 6mm Boron Steel	610 x 6mm Boron Steel	610 x 6mm Boron Steel	610 x 6mm Boron Steel	610 x 6mm Boron Steel
WIDTH OF CUT	2128mm	2345mm	2562mm	2778mm	3450mm
TRANSPORTATION WHEEL	14 Ply 400/60-15.5	14 Ply 400/60-15.5	14 Ply 400/60-15.5	14 Ply 400/60-15.5	14 Ply 400/60-15.5
DISTANCE BETWEEN DISCS	228 mm	228 mm	228 mm	228 mm	228 mm
BEARING HUBS	6	6	6	8	8
TRACTOR POWER (HP)	60-70	70-80	80-90	115-135	140-165
APPROX WEIGHT	1500 kg.	1630 kg.	1750 kg.	1830 kg.	2000 kg.
