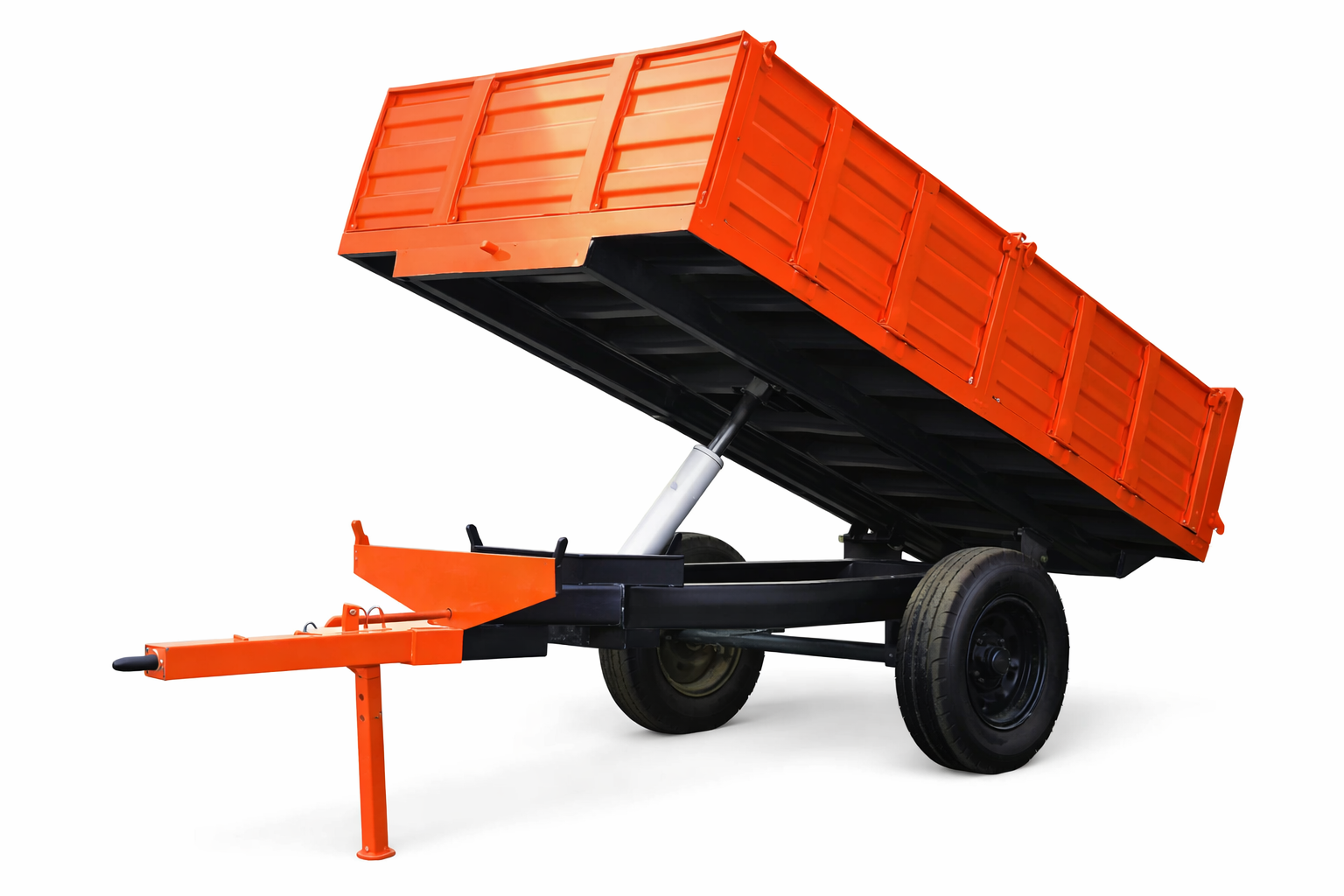

Hydraulic Tipping Trailer/Tractor Trolley-Single Axle

In Stock

Hydraulic Tipping Trailer: Easily transportable as it gets easily attached/ mounted. Well designed for towing and loading stability. Wide tubeless tyres.

Flexibility of loading/unloading goods/ materials like farm produce by simply tipping them which saves overall operating cost of transportation.
High grade hub, axle, bearings & tipping mechanism enhance life of the trailer (durability & reliability).
Easily transportable as it gets easily attached/ mounted.
Well designed for towing and loading stability.
Wide tubeless tyres.

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist

Have a Question? Ask a Specialist

(+260) 977 525 496 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Durability.

Always the correct Implement

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

Hydraulic Tipping Trailer: Easily transportable as it gets easily attached/ mounted. Well designed for towing and loading stability. Wide tubeless tyres.

Flexibility of loading/unloading goods/ materials like farm produce by simply tipping them which saves overall operating cost of transportation.
High grade hub, axle, bearings & tipping mechanism enhance life of the trailer (durability & reliability).
Easily transportable as it gets easily attached/ mounted.
Well designed for towing and loading stability.
Wide tubeless tyres.

Specifications of Hydraulic Tipping Trailer/Tractor Trolley-Single Axle (2 Wheel)

CAPACITY	5 M.TON (MODEL NO. GGS-TT5)
DIMENSION (LxWxH)	3000mm x 2000mm x 500mm
MAIN CHASSIS	Channel 125 x 65 mm Heavy Duty
2NDCHASSIS (DUMPER CHASSIS)	Channel 100 x 50 mm Heavy Duty
CROSS MEMBERS	75×40 mm Channel
FLOOR/ BED PLATFORM	3mm
SIDE WALL	2.5 mm (Corrugated)
OPTIONAL PANEL EXTENSIONS	200mm
FRONT WALL	Bolted
REAR & SIDE WALL	Drop down
HYDRAULIC JACK	8 Ton Capacity
AXLE	01 no., 75×75 mm square (Water Proof Hubs) with hydraulic break mechanism
OVERLOAD SUSPENSION	Leaf spring -36”
NO. OF TYRES	2 Nos. of size 7.50×16
PAY LOAD	5 MT
REQUIRED POWER (HP)	35 HP & Above
APPROX. WEIGHT	1250 Kg.
