Disc Ridger

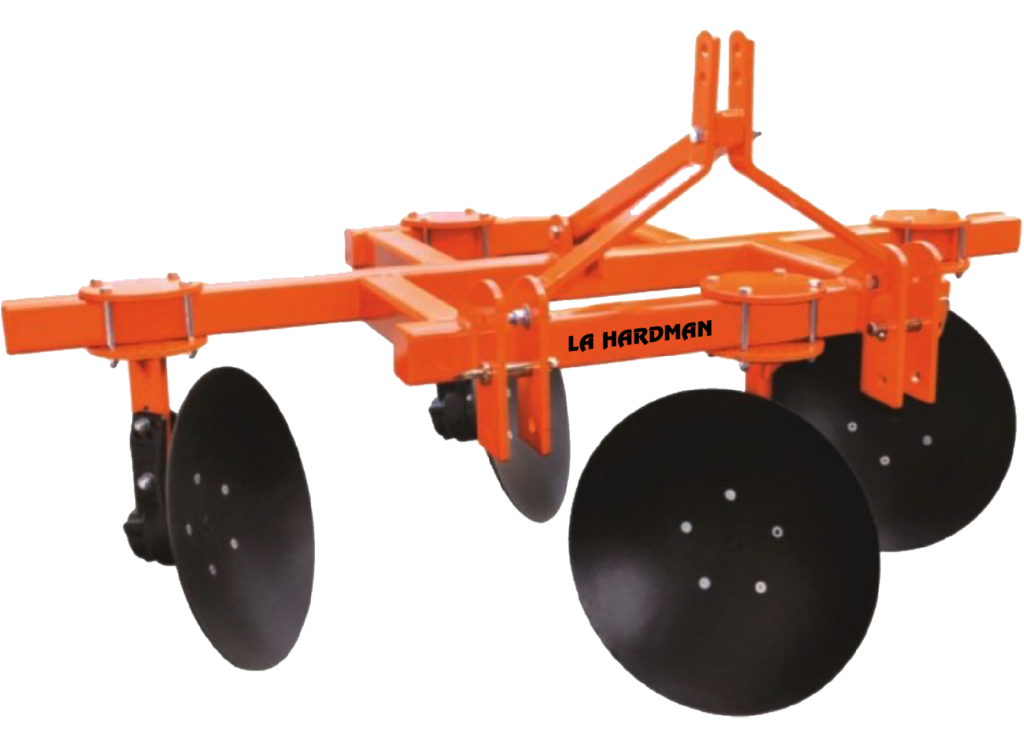

The 1 Row Disc Ridger / Bund Maker consists of mild steel box frame, hitch system, and discs. It is used for making irrigation banks of up to 500 – 600 mm height and 600 – 800 mm width for effective control of flood irrigation or bunds of the size and shape to match crop and soil conditions.
Did you like this product? Add to favorites now and follow the product.
(+260) 977 525 496 Start Live Chat
Description
The 1 Row Disc Ridger / Bund Maker consists of mild steel box frame, hitch system, and discs. It is used for making irrigation banks of up to 500 – 600 mm height and 600 – 800 mm width for effective control of flood irrigation or bunds of the size and shape to match crop and soil conditions.
| Description | GGSDR-1 | GGSDR-2 |
| Frame (mm) | 100x100x6 (Sq. Tubular Frame) | 100x100x6 (Sq. Tubular Frame) |
| Axle Type | Spindle | Spindle |
| No. of Disc | 2 | 4 |
| Type of Disc | Notched or plain Disc (Optional) | Notched or plain Disc (Optional) |
| Disc diameter (mm) | 660 x 6 (26 Inch) | 660 x 6 (26 Inch) |
| Maximum width between ridgers (mm) |
1000 | 1000 |
| Working Depth(Max. mm) | 330 | 330 |
| Bearing Hub | 2 | 4 |
| Weight (kg.Approx) | 250 | 435 |
| Tractor Power (HP) | 45 & Above | 60 & Above |
