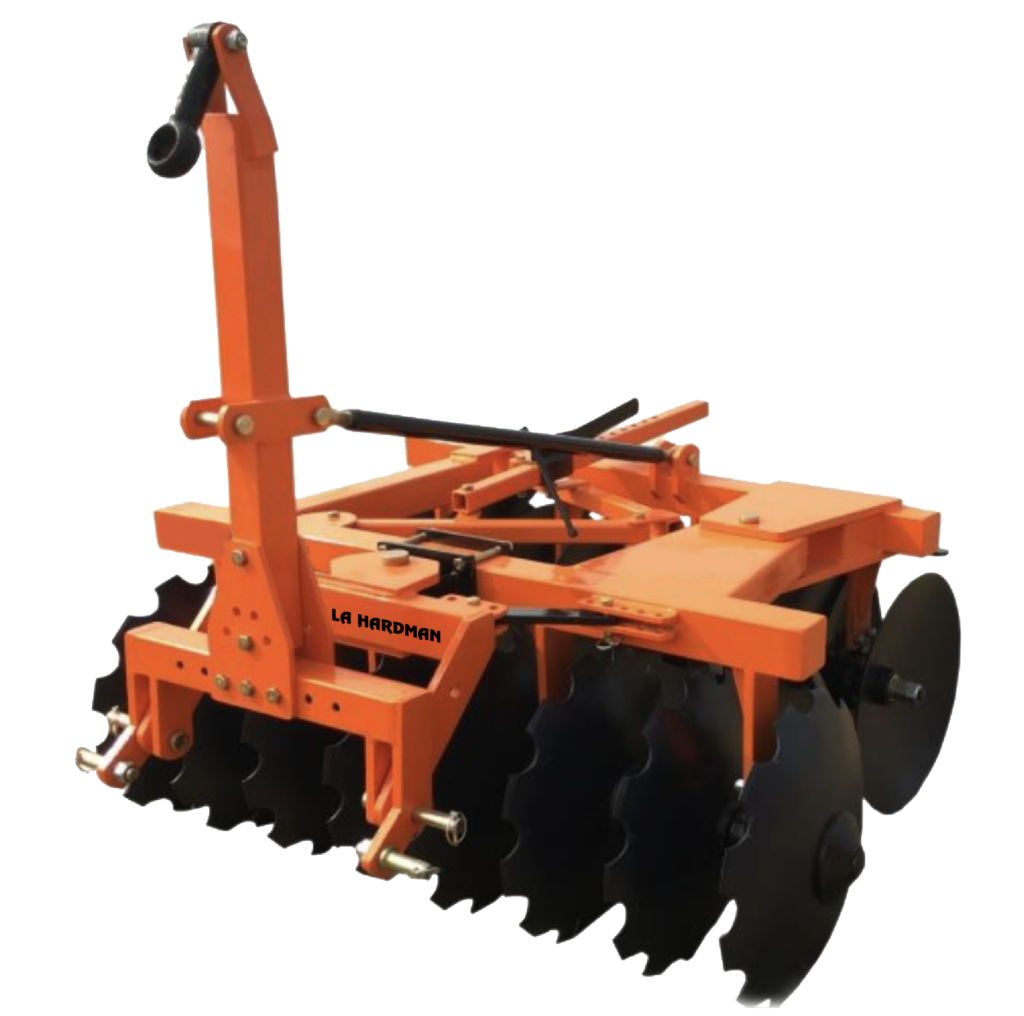

Compact Disc Harrow

Compact Disc Harrow

In Stock

Add to Wishlist
Add to Wishlist

The Compact Disc Harrow used farm for the superficial ploughing, for the shatter of preparation of soil for sowing, burial of organic substances and remains.

Features & Benefits:

  • To air the soil & eliminate the weeds.
  • For breaking the roots.
  • It can be used in light & medium soil.
  • Easily transport- as it gets easily attached and mounted.
Order on WhatsApp

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

(+260) 977 525 496 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Durability.

Always the correct Implement

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: ,

Description

The Compact Disc Harrow used farm for the superficial ploughing, for the shatter of preparation of soil for sowing, burial of organic substances and remains.

Features & Benefits:

  • To air the soil & eliminate the weeds.
  • For breaking the roots.
  • It can be used in light & medium soil.
  • Easily transport- as it gets easily attached and mounted.

Specifications for LA HARDMAN Compact Disc Harrow

DESCRIPTION GGS-DH16 GGS-DH18 GGS-DH20 GGS-DH22 GGS-DH24
FRAME 100mmx100mmx6mm Square Pipe Frame 100mmx100mmx6mm Square Pipe Frame 100mmx100mmx6mm Square Pipe Frame 100mmx100mmx6mm Square Pipe Frame 100mmx100mmx6mm Square Pipe Frame
GANG BOLT (mm) 28mm Solid Square Rod 28mm Solid Square Rod 28mm Solid Square Rod 28mm Solid Square Rod 28mm Solid Square Rod
NO.OF DISCS 16 18 20 22 24
TYPE OF DISCS Notched Disc in Front & Plain Disc in Rear Notched Disc in Front & Plain Disc in Rear Notched Disc in Front & Plain Disc in Rear Notched Disc in Front & Plain Disc in Rear Notched Disc in Front & Plain Disc in Rear
DISC DIAMETER (mm) 610 x 6 Boron Steel 610 x 6 Boron Steel 610 x 6 Boron Steel 610 x 6 Boron Steel 610 x 6 Boron Steel
WIDTH OF CUT (mm) 1912 2128 2345 2562 2778
DISTANCE BETWEEN DISCS (mm) 228 228 228 228 228
BEARING HUBS 6 6 6 8 8
TRACTOR POWER (hp) 60-70 70-80 75-85 90-100 105-125
APPROX. WEIGHT 840 960 1025 1120 1230
